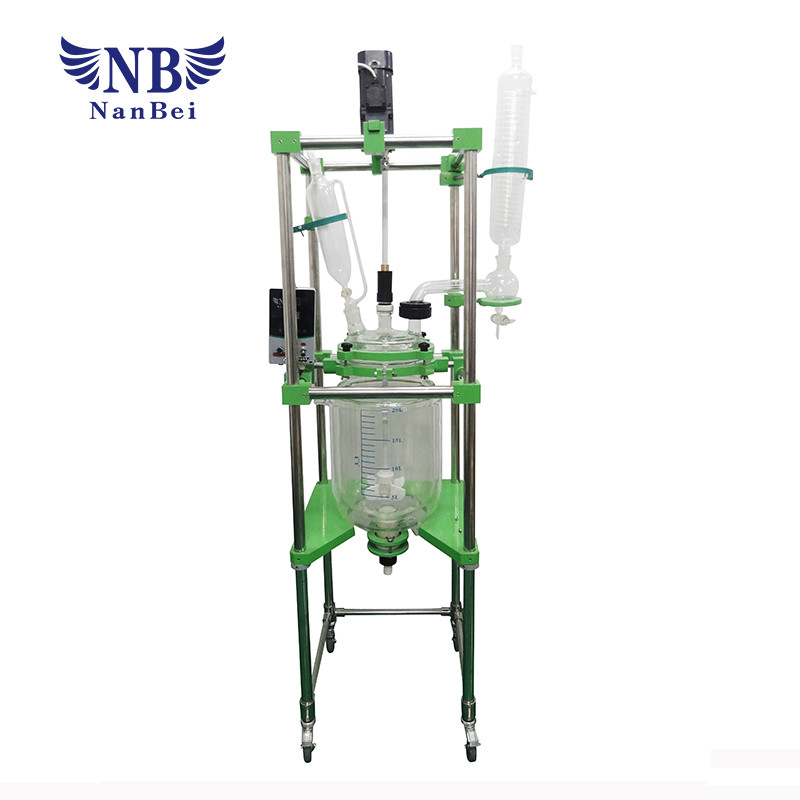

10L Lab Chemical Mixing Reacor , Lab Vacuum Double Layer Glass Reactor
Brief introduction of double glass reactor:
The kettle body is designed by double glazing glass reactor, the inner layer into the reaction solution to do the reaction was stirred interlayer can pass into the type of the cold heat source circulating heating or cooling the reaction can also be used in high temperature, low temperature, or vacuum experiment reflux and distillation of the reaction solution. It is the ideal equipment for primary and secondary schools of modern chemistry experiments, biopharmaceutical and synthesis of new materials.
Features of NANBEI chemical reactor:
1. A full set of glassware with GG3.3 borosilicate glass production with good chemical and physical properties
2. Limit temperature of 250℃ for high temperature experiments, and limit temperature of -60℃ for low temperature experiments.
3. Titanium ring, new titanium alloy mechanical seal, sealing 0.098Mpa.
4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.
5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.
6. Quality 304 stainless steel all-inclusive PTFE stirring rod and a three-bladed propeller structure.
7. The bottom flanged discharge port with a Teflon value, aluminum parts flange fixed container no dead ends.
| Model | NB-10L |
| Glass Material | GG-17 |
| Frame Material | 304 Stainless steel |
| Moving mode | Brake type universal corner wheel |
| Reaction bottle capacity | 10L |
| Jacketed Capacity | 6L |
| Flanged out of the oil circulation port | Low feed high outlet |
| Reaction bottle cover port | 6ports |
| Discharger port distance to ground | 450mm |
| Temp. range | -80-250°C |
| Vacuum | 0.098Mpa |
| Stirring speed | 0-450rpm |
| Stirring diameter | 12mm |
| Stirring power | 90W |
| Voltage(V/Hz) | 220V/50Hz |
| Dimension(mm) | 520*520*2000 |
| Packing size(mm) | 1370*590*800 |
| Packing weight(KG) | 68 |
